Terminal Lugs

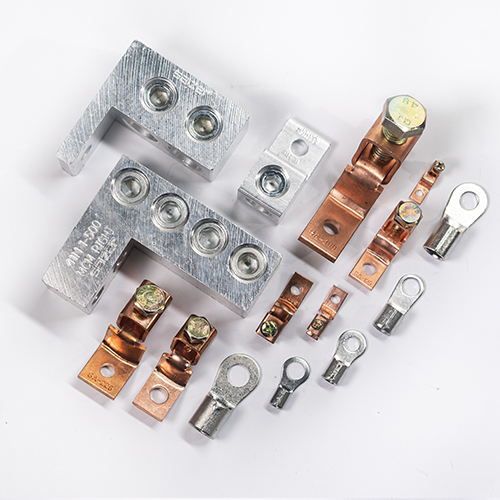

Terminal Lugs & Electrical Connectors

1) Non-Insulated Ring Type Terminal Lugs

Sizes

Wire Size (mm²)	AWG	Wire Size (mm²)	AWG	Wire Size (mm²)	AWG	Wire Size (mm²)	AWG
1.25-3	22-16	3.5-4	14-12	5.5-10	12-10	14-10	6
1.25-4	22-16	3.5-5	14-12	8-5	8	14-12	6
1.25-5	22-16	3.5-6	14-12	8-6	8	22-6	4
2-4	16-14	3.5-8	14-12	8-8	8	22-8	4
2-5	16-14	5.5-4	12-10	8-10	8	22-10	4
2-6	16-14	5.5-5	12-10	8-12	8	22-12	4
2-8	16-14	5.5-6	12-10	14-6	6	38-6	2
2-10	16-14	5.5-8	12-10	14-8	6	38-8	2

Wire Size (mm²)	AWG	Wire Size (mm²)	AWG	Wire Size (mm²)	AWG
38-10	2	80-8	3/0-4/0	180-10	400MCM
38-12	2	80-10	3/0-4/0	180-12	400MCM
60-8	1/0	80-12	3/0-4/0	200-12	500MCM
60-10	1/0	100-8	250MCM	325-12	750-1000MCM
60-12	1/0	100-10	250MCM	325-16	750-1000MCM
70-8	2/0	100-12	250MCM
70-10	2/0	150-10	350MCM
70-12	2/0	150-12	350MCM

2) Insulated Ring Type Terminal Lugs

Sizes

Wire Size (mm²)	AWG	Wire Size (mm²)	AWG
1.25-3	22-16	3.5-4	14-12
1.25-4	22-16	3.5-5	14-12
1.25-5	22-16	3.5-6	14-12
2-4	16-14	5.5-4	12-10
2-5	16-14	5.5-5	12-10
2-6	16-14	5.5-6	12-10
2-8	16-14	5.5-8	12-10
2-10	16-14	5.5-10	12-10

3) Non-Insulated Y Type (Spade) Terminal Lugs

Sizes

Wire Size (mm²)	AWG
1.25-3	22-16
1.25-4	22-16
2-4	16-14
3.5-5	14-12
3.5-5	14-12
8-6	8
14-6	12-10

4) Insulated Y Type Terminal Lugs

Sizes

Wire Size (mm²)	AWG
1.25-3	22-16
1.25-4	22-16
2-4	16-14
3.5-4	14-12
3.5-5	14-12
5.5-4	12-10
5.5-5	12-10

5) Pin Type Terminal

Use: Used for terminating stranded wires into terminal blocks or clamps.

Sizes

Wire Size (mm²)	AWG
1.25	22-16
2	16-14
2-18	16-14
5.5	12-10

6) Insulated Female Disconnect

Sizes

Wire Size (mm²)	AWG
1.25	22-16
2	16-14
5.5	12-10

7) Insulated Male Disconnect

Sizes

Wire Size (mm²)	AWG
1.25	22-16
2	16-14
5.5	12-10

8) End Cord Sleeve (Ferrule)

Sizes

Wire Size (mm²)	Color
0.5	Orange
0.75	White
1	Yellow
1.5	Red
2.5	Blue
4	Gray
6	Black
10	White
16	Green
25	Yellow

9) Long Barrel Terminal Lugs (One-Hole / Two-Hole)

Sizes: One Hole

Wire Size (mm²)	Stud Size (mm)	Wire Size (mm²)	Stud Size (mm)
10	6	120	12
16	6	150	12
25	6	185	12
35	8	185	16
35	10	240	12
50	8	240	16
50	10	300	16
50	12	400	16
70	10	500	16
70	12
95	10
95	12

Sizes: Two Hole

Wire Size (mm²)	Stud Size (mm)
16	6
25	6
35	8
50	8
70	12
95	12
120	12
Wire Size (mm²)	Stud Size (mm)
150	12
185	12
240	12
300	16
400	16
500	16

10) SC Lugs

Sizes

Model	Size (mm2)	Model	Size (mm2)	Model	Size (mm2)	Model	Size (mm2
6-6	6	25-8	25	70-8	70	150-10	150
10-4	10	25-10	25	70-10	70	150-12	150
10-6	10	35-6	35	70-12	70	150-16	150
10-8	10	35-8	35	95-10	95	185-10	185
16-6	16	35-10	35	95-12	95	185-12	185
16-8	16	50-8	50	120-8	120	240-12	240
16-10	16	50-10	50	120-10	120	240-16	240
25-6	25	50-12	50	120-12	120	300-16	300

11) Solderless Terminal Lugs

Sizes

Model	AWG
SA-25	#12-10
SA-35	8-6
SA-75	4-2
SA-125	1/0
SA-175	2/0
SA-225	3/0-4/0
SA-300	250-350MCM
SA-400	400-500MCM
SA-650	750-1000MCM

12) Universal Terminal Lugs

Universal

Size
1x#6	2×2/0
1x#2	2x250MCM
1×2/0	2x350MCM
1x250MCM	2x600MCM
1x350MCM	2x800MCM
1x600MCM	2x1000MCM
1x800MCM	3x500MCM
1x1000MCM

Vertically Arranged

Size
2x500MCM
3x500MCM
4x500MCM
1x1000MCM

Ladder Type

Size
3x500MCM
4x500MCM
2LDR-350
2LDR-600

13) Solderless Connector

Sizes

AWG
8
6
4
2
1/0
2/0
3/0
4/0-250MCM
350MCM
500MCM
750MCM
1000MCM

14) Two-Bolt Solderless Connector

Sizes

AWG
3/0-4/0
250-350MCM
350-500MCM
750-1000MCM

15) Butt Connector

Sizes

Wire Size (mm²)	AWG	Wire Size (mm²)	AWG
1.25	22-16	60	1/0
2	16-14	70	2/0
3.5	14-12	80	3/0-4/0
5.5	12-10	100	250
8	8	150	350
14	6	180	400
22	4	200	500
38	2	325	1000

16) Breaker Lugs

Sizes

Amperes
50A
100A
250A
400A
630a
